Turn table style automatic ultrasonic plastic tube welding machine
1.Ultrasonic welds plastic tube tail, the strength of welding area same as a whole part.
2.It's turn table style, it can orientate, welding, cutting, printing automatically.
3.Widely used in cosmetic, commodity, medicine, food etc.
4.Install cold water circulation in back mold, which can assure sealing quality under high output status.
5.Stepper motor is used for orientation.
6.Machine is small and light, easy to operate, high efficiency, low failure.
| Items | Parameters | ||||||||||
| Model | LK-2020TT | ||||||||||
| Power supply | AC220V | ||||||||||
| Power | 2000W | ||||||||||
| Frequency | 20KHZ | ||||||||||
| Tube length | 50~250mm | ||||||||||
| Tube diameter | 10~50mm | ||||||||||
| Speed | 20-30 tubes/min | ||||||||||
| Turntable diameter | 425mm | ||||||||||
| Machine size | 1000*800*1150mm | ||||||||||
| Net weight | 205KG | ||||||||||
| xxx | xxx |

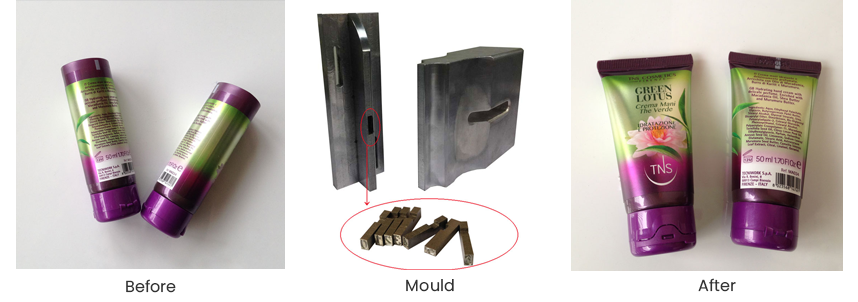

Samples
