5 nozzles Ceramic Pump Filling Machine
(1) .5 nozzles of ceramic pump is equipped with ceramic plunger and stepping motor. The filling volume and filling speed can be accurately controlled easily. Equipped with X, Y, Z three axis, can mobile filling, high efficiency, suitable for the whole plate filling, more suitable for irregular bottle.
(2).The special pump head design makes the cleaning and installation very simple, delicate and compact, and easy to carry.
(3). PLC easy to operate. The machine is small and light, easy to carry.
(4) It is suitable for medicine, food, chemical industry, cosmetics, laboratory, etc.
| Items | Parameters | ||||||||||
| Model | LK-051F | ||||||||||
| Power supply | AC220V 50HZ | ||||||||||
| Power | 400W | ||||||||||
| Filling range | Min 0.1ml | ||||||||||
| Accuracy | 0.02ml | ||||||||||
| Speed | 60-200tims/Min | ||||||||||
| Qty of Filling nozzle | 5 nozzles | ||||||||||
| Table size | 420*500mm （customizable） | ||||||||||
| Machine size | 950*900*650mm | ||||||||||
| Net weight | 73KG |

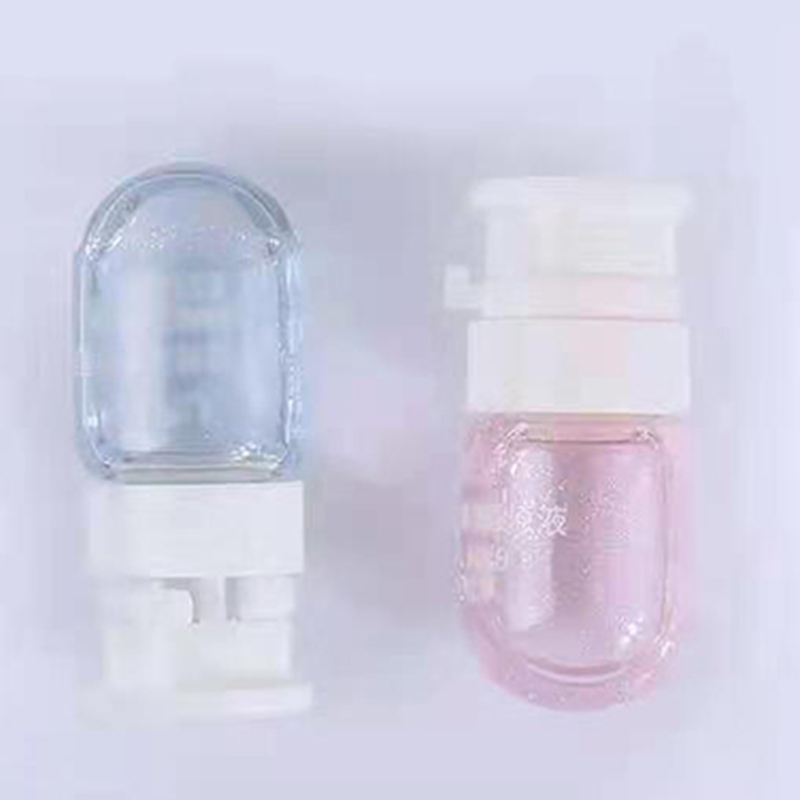

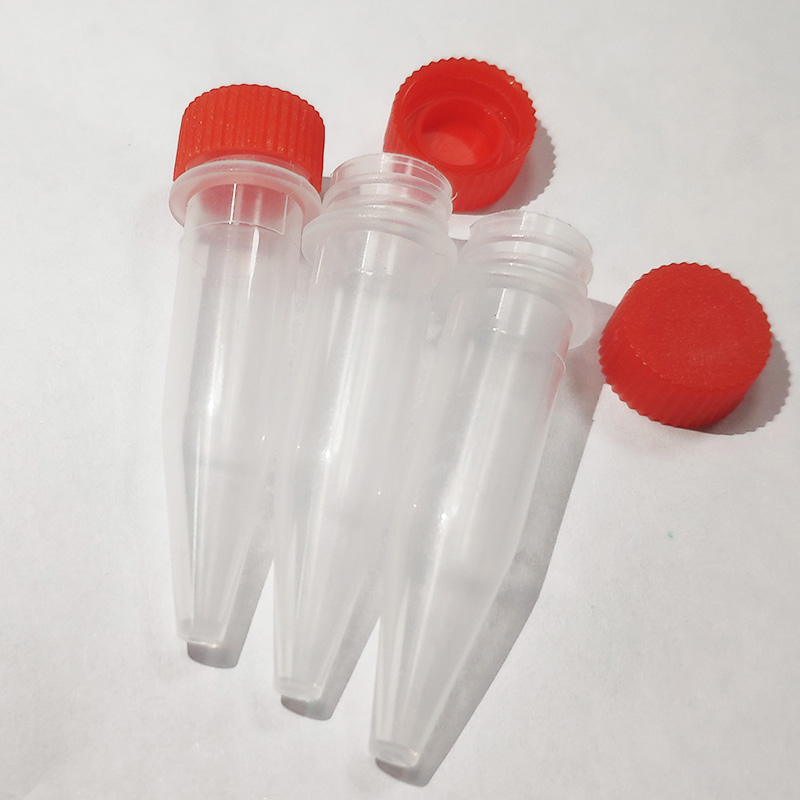

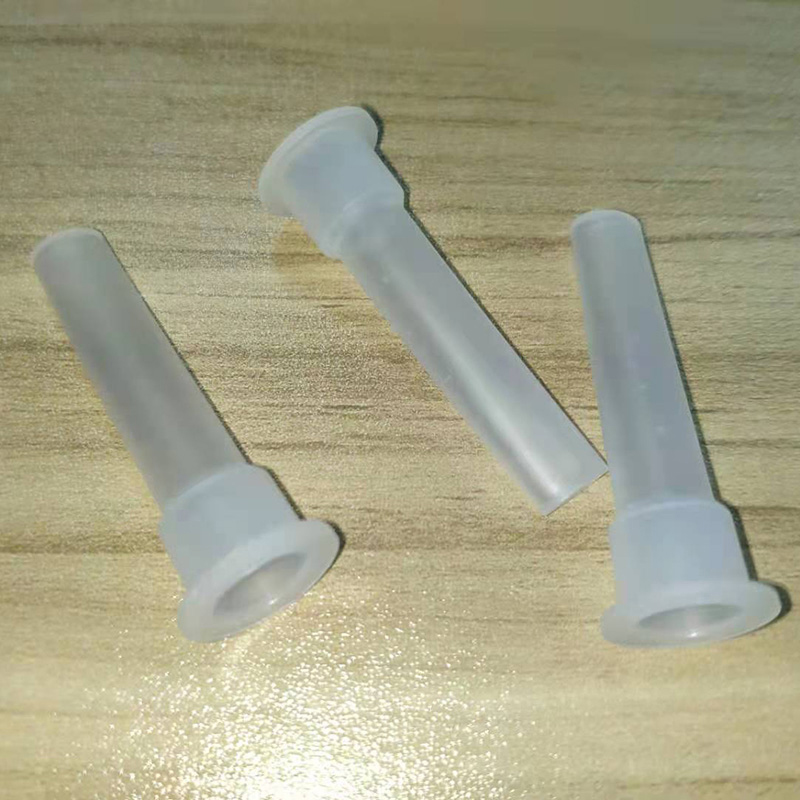

Samples
 |  |  |
5 nozzles Ceramic Pump Filling Machine
(1) .5 nozzles of ceramic pump is equipped with ceramic plunger and stepping motor. The filling volume and filling speed can be accurately controlled easily. Equipped with X, Y, Z three axis, can mobile filling, high efficiency, suitable for the whole plate filling, more suitable for irregular bottle.
(2).The special pump head design makes the cleaning and installation very simple, delicate and compact, and easy to carry.
(3). PLC easy to operate. The machine is small and light, easy to carry.
(4) It is suitable for medicine, food, chemical industry, cosmetics, laboratory, etc.
| Items | Parameters | ||||||||||
| Model | LK-051F | ||||||||||
| Power supply | AC220V 50HZ | ||||||||||
| Power | 400W | ||||||||||
| Filling range | Min 0.1ml | ||||||||||
| Accuracy | 0.02ml | ||||||||||
| Speed | 60-200tims/Min | ||||||||||
| Qty of Filling nozzle | 5 nozzles | ||||||||||
| Table size | 420*500mm （customizable） | ||||||||||
| Machine size | 950*900*650mm | ||||||||||
| Net weight | 73KG |
Samples
| | |
