Double-head Semi auto Blister forming machine
Suitable for PVC, PE, PET, PETG, PP, PC, PS, HIPS, APET etc, heat the material and make them soft then vacuum suction, that can transform sheet material into various plastic blister.
This machine is widely use in blister sample making, also can be used in small batch production.
Automatic push furnace design, greatly reduce the labor, improve production efficiency and product quality
| Items | Parameters | ||||||||||
| Model | LK-61B | ||||||||||
| Power supply | AC380V | ||||||||||
| Power | 13.0KW | ||||||||||
| Vacuum pump capacity | 40m³/H | ||||||||||
| Max. forming size | 560*610mm | ||||||||||
| Max. forming height | 200mm | ||||||||||
| Speed | 300~500moulds/H | ||||||||||
| Thickness of material | 0.2~1.5mm | ||||||||||
| Machine size | 2700*1200 *2000mm | ||||||||||
| N. weight | 1000KG | ||||||||||
| *** | *** |

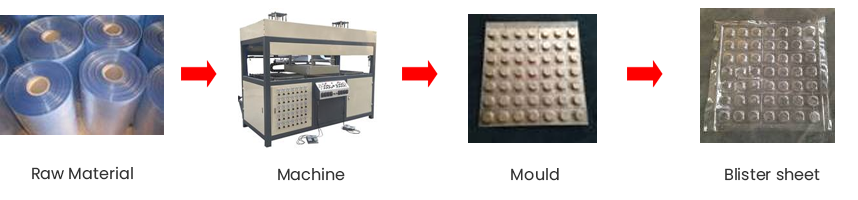

Working principle
Double-head Semi auto Blister forming machine
Suitable for PVC, PE, PET, PETG, PP, PC, PS, HIPS, APET etc, heat the material and make them soft then vacuum suction, that can transform sheet material into various plastic blister.
This machine is widely use in blister sample making, also can be used in small batch production.
Automatic push furnace design, greatly reduce the labor, improve production efficiency and product quality
| Items | Parameters | ||||||||||
| Model | LK-61B | ||||||||||
| Power supply | AC380V | ||||||||||
| Power | 13.0KW | ||||||||||
| Vacuum pump capacity | 40m³/H | ||||||||||
| Max. forming size | 560*610mm | ||||||||||
| Max. forming height | 200mm | ||||||||||
| Speed | 300~500moulds/H | ||||||||||
| Thickness of material | 0.2~1.5mm | ||||||||||
| Machine size | 2700*1200 *2000mm | ||||||||||
| N. weight | 1000KG | ||||||||||
| *** | *** |
Working principle
