Blister forming machine
Automatic push furnace design, greatly reduce the labor, improve production efficiency and product quality
Suitable for PVC, PE, PET, PETG, PP, PC, PS, HIPS, APET etc, heat the material and make them soft then vacuum suction, that can transform rolled or sheet material into various plastic blister.
This machine is widely use in blister sample making, also can be used in small batch production.
| Items | Parameters | ||||||||||
| Model | LK-61A | ||||||||||
| Power supply | AC380V | ||||||||||
| Power | 12.5KW | ||||||||||
| Vacuum pump capacity | 20m³/H | ||||||||||
| Max.forming size | 560*610mm | ||||||||||
| Max. forming height | 200mm | ||||||||||
| Speed | 200~300moulds/H | ||||||||||
| Thickness of material | 0.2~1.5mm | ||||||||||
| Machine size | 1830*1200*2010mm | ||||||||||
| N. weight | 550KG | ||||||||||
| *** | *** |

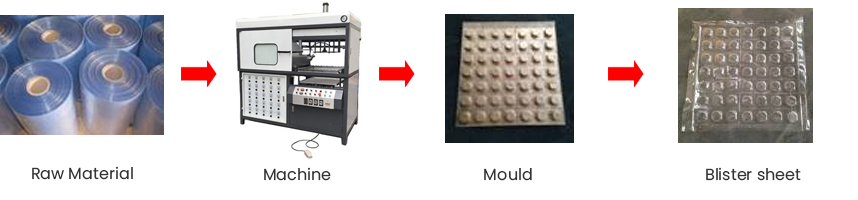

Working principle
Blister forming machine
Automatic push furnace design, greatly reduce the labor, improve production efficiency and product quality
Suitable for PVC, PE, PET, PETG, PP, PC, PS, HIPS, APET etc, heat the material and make them soft then vacuum suction, that can transform rolled or sheet material into various plastic blister.
This machine is widely use in blister sample making, also can be used in small batch production.
| Items | Parameters | ||||||||||
| Model | LK-61A | ||||||||||
| Power supply | AC380V | ||||||||||
| Power | 12.5KW | ||||||||||
| Vacuum pump capacity | 20m³/H | ||||||||||
| Max.forming size | 560*610mm | ||||||||||
| Max. forming height | 200mm | ||||||||||
| Speed | 200~300moulds/H | ||||||||||
| Thickness of material | 0.2~1.5mm | ||||||||||
| Machine size | 1830*1200*2010mm | ||||||||||
| N. weight | 550KG | ||||||||||
| *** | *** |
Working principle
