Fully automatic blister forming machine
Suitable for PVC, PE, PET, PC, PP, HIPS, APET, PETG, PS etc.

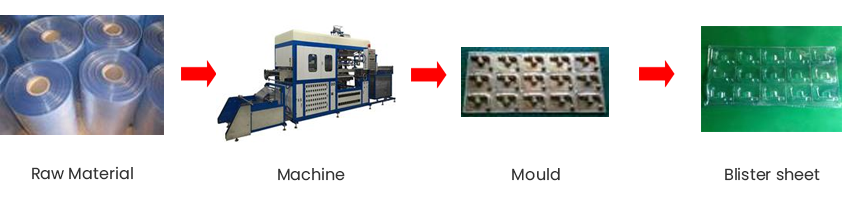

heat the material and make them soft then vacuum suction, that can transform sheet material into various plastic blister.
This machine is widely use in toys, hardwares, food, electronic porducts, medinine, commodity blister making.
Just need to load material manually then machine can product blister sheet automatically.
Chiller is available, large capacity of vacuum pump.
| Items | Parameters | ||||||||||
| Model | LK-71H | ||||||||||
| Power supply | AC380V | ||||||||||
| Max.Power | 39.0KW | ||||||||||
| Vacuum pump capacity | 100m³/H | ||||||||||
| Forming length | 660~1250mm | ||||||||||
| Forming width | 510~760mm(adjustable) | ||||||||||
| Productivity | 220-480moulds/H | ||||||||||
| Thickness of material | 0.2~1.5mm | ||||||||||
| Machine size | 6800*1480 *2700mm | ||||||||||
| N. weight | 3000KG | ||||||||||
| *** | *** |
Working principle
Fully automatic blister forming machine
Suitable for PVC, PE, PET, PC, PP, HIPS, APET, PETG, PS etc.
heat the material and make them soft then vacuum suction, that can transform sheet material into various plastic blister.
This machine is widely use in toys, hardwares, food, electronic porducts, medinine, commodity blister making.
Just need to load material manually then machine can product blister sheet automatically.
Chiller is available, large capacity of vacuum pump.
| Items | Parameters | ||||||||||
| Model | LK-71H | ||||||||||
| Power supply | AC380V | ||||||||||
| Max.Power | 39.0KW | ||||||||||
| Vacuum pump capacity | 100m³/H | ||||||||||
| Forming length | 660~1250mm | ||||||||||
| Forming width | 510~760mm(adjustable) | ||||||||||
| Productivity | 220-480moulds/H | ||||||||||
| Thickness of material | 0.2~1.5mm | ||||||||||
| Machine size | 6800*1480 *2700mm | ||||||||||
| N. weight | 3000KG | ||||||||||
| *** | *** |
