Small Automatic Blister Forming Machine

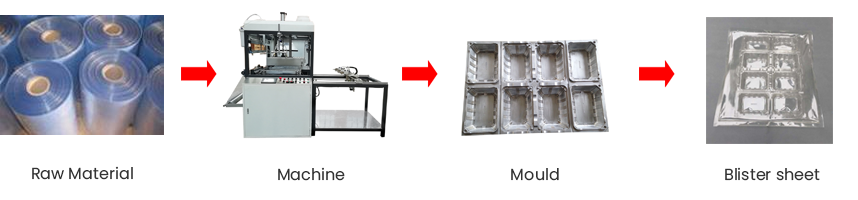

Automatic material feeding→Heating→Vacuum forming→Sheet Clamping and pull -out by manipulator→ Sheet cutting and stacking.
Suitable for plastic material such as PVC, PE, PET, PETG, PP, PC, PS, HIPS, APET,Acrylic,ABS etc.
This machine is widely used in toys, hardwares, food, electronic porducts, medicine, commodity blister making.
| Items | Parameters | ||||||||||
| Model | LK-61C | ||||||||||
| Power supply | AC380V | ||||||||||
| Power | 17KW | ||||||||||
| Vacuum pump capacity | 20m³/H | ||||||||||
| Max.forming size | 560*610mm | ||||||||||
| Max. forming height | 200mm | ||||||||||
| Speed | 200~300moulds/H | ||||||||||
| Thickness of material | 0.2~1.5mm | ||||||||||
| Machine size | 2620*2020*2050mm | ||||||||||
| N. weight | 700KG | ||||||||||
| *** | *** |
Working principle
